Jan 6, 2025
What to look for in the LiDAR Sensor?
What to look for in the LiDAR Sensor?
Shahbaz Hassan
Tehcnical Content Writer
This blog explores the evolution of LiDAR technology, from its core principles to its diverse applications across various industries. We will delve into the key components and advancements in LiDAR systems, highlighting how competition and innovation are driving this transformative technology.
The Evolution of Mobile Giants and LiDAR Technology
The rivalry between Apple and Samsung has significantly influenced technological advancements over the past decade. Apple, established in the 1970s in Steve Jobs' garage, gained prominence through its reliable hardware and diverse product range, including iPhones, iPods, and computers. In contrast, Samsung, founded in 1938 as a grocery store in South Korea, diversified into insurance, security, and retail before venturing into electronics in the 1960s, producing semiconductors, home appliances, TVs, and telecommunication devices.
The competition intensified with the launch of Apple's iPhone in 2007 which was followed by introduction of Samsung's Galaxy S in 2009. This rivalry spurred innovation, leading to enhanced product designs, durability, superior camera specifications, improved operating systems, and aesthetic appeal, benefiting consumers worldwide.
The evolution of LiDAR technology mirrors the transformative journey of mobile giants like Apple and Samsung. Just as Apple revolutionized the smartphone market with its sleek designs and groundbreaking features, LiDAR has reshaped industries with its precise depth-sensing capabilities. Samsung's adaptability and diversification into various markets parallel LiDAR's expanding applications, from its origins in autonomous vehicles to its growing role in infrastructure management, agriculture, and industrial automation. Much like how the rivalry between these tech giants drove innovation and adoption, the competitive development of LiDAR systems has accelerated their refinement, making them indispensable in areas such as urban planning, construction monitoring, and smart city integration. This analogy highlights how technological advancements, fueled by innovation and competition, evolve to redefine industries and everyday life.
Understanding LiDAR Technology
LiDAR (Light Detection and Ranging) technology, invented in the 1960s by Hughes Aircraft Company, utilizes laser light to measure distances by calculating the time it takes for the light to travel to an object and back. This method enables the creation of detailed topographical maps and 3D models, serving as a photonic analogy to radar.
LiDAR sensors are majorly composed of:
A laser scanner that emits rapid pulses of near-infrared laser light.
A LiDAR sensor that is used for detecting and collecting the returning light pulses.
A GPS and an Inertial Navigation System (INS).
A processor for calculating the time and distance and for building the resultant data set, called a LiDAR point cloud.
Advancements in LiDAR Technology
LiDAR's commercial application in automobiles began in the 2010s, gaining popularity in high-end electric vehicles by the 2020s. Initially limited by high costs and technical challenges, the technology saw a surge in sales in 2023, driven by competition among Chinese EV manufacturers. Today, key players in the global LiDAR market include Valeo in Europe; Luminar and Ouster in North America; and Hesai, RoboSense, Seyond, and Innoviz in Asia.
Types of LiDAR Sensors
The LiDAR sensors can be differentiated on the basis of multiple factors such as Beam Steering, Optics used, Ranging methodology, Laser / detector technology and laser wavelength. The summary of each type is discussed below:
Beam Steering Options
LiDAR systems employ various beam steering techniques to capture 3D point cloud data, each with unique advantages and limitations.
Mechanical LiDAR: Introduced by Velodyne in 2007, this system uses multiple lasers arranged vertically, rotating to scan the environment. However, its complex mechanical structure can limit its lifespan.
Hybrid Solid-State LiDAR: Employs micro-electro-mechanical systems (MEMS) to direct laser beams via rotating mirrors, offering rapid data acquisition and resilience to environmental factors.
Optical Phased Array (OPA) LiDAR: Utilizes an array of transmitters and receivers, adjusting light wave phases to steer beams precisely without moving parts.
Flash: Captures the entire scene with a single pulse of light, eliminating the need for beam steering; suitable for short-range applications.
Optical System
LiDAR systems can be categorized by their optical system configuration, impacting factors like design complexity, flexibility, and application suitability.
Monostatic System: Combines the transmitter and receiver in a single location, simplifying design but requiring precise alignment.
Bi-static System: Separates the transmitter and receiver, enabling more flexibility in large-scale applications.
Ranging Mechanism / Detection Options
LiDAR systems employ various ranging mechanisms to determine distances to objects, each offering distinct advantages in terms of accuracy, complexity, and performance.
ToF (Time of Flight): Measures the time a laser pulse takes to return after hitting an object; widely used for its simplicity.
FMCW (Frequency-Modulated Continuous Wave): Measures changes in frequency to determine distance and velocity; provides high accuracy but is more complex.
Laser Technology
The choice of laser technology significantly impacts the performance, cost, and size of a LiDAR system, with different laser types suitable for various applications.
EEL (Edge-Emitting Lasers): Reliable and cost-effective for short to medium ranges, commonly used in automotive LiDAR.
VCSEL (Vertical-Cavity Surface-Emitting Lasers): Compact and efficient, ideal for consumer-grade devices like smartphones.
Fibre Laser: Offers high power and efficiency, often used in industrial and long-range applications.
Detector Technology
Detector technology plays a crucial role in determining the sensitivity, accuracy, and performance of a LiDAR system, with various options available to suit different application requirements.
PIN (Positive-Intrinsic-Negative): A basic photodiode type; works well for standard detection but less sensitive in low-light conditions.
APD (Avalanche Photodiode): Provides higher sensitivity by amplifying weak light signals; commonly used in LiDAR systems.
GMAPD (Geiger-Mode Avalanche Photodiode): Operates in a digital "on/off" mode, offering high accuracy for 3D imaging.
SiPM (Silicon Photomultiplier): Combines high sensitivity and fast response, ideal for advanced LiDAR applications.
Wavelength
The choice of wavelength significantly impacts the performance, safety, and cost of a LiDAR system, with different wavelengths optimized for specific applications and environments.
905nm: Standard wavelength for consumer and automotive LiDAR due to its low cost and availability.
1550nm: Offers better eye safety and performance in challenging conditions but is more expensive.
Others: Covers specialized wavelengths for niche applications, such as atmospheric or underwater LiDAR.
The LiDAR industry offers numerous LiDAR sensor design choices for key components and measurement methods, enabling players in the field to differentiate themselves with unique technology combinations. According to IDTechEx, which tracks 95 players in this space, each claims to offer a next-generation product superior to competing technologies.
However, the range of options is not infinite. Certain components are better suited for specific technologies—for instance, vertical cavity surface-emitting lasers (VCSELs) are preferred for 3D flash LiDAR over edge-emitting lasers (EELs). On the other hand, some combinations, such as MEMS with FMCW, face technical challenges that limit their adoption.
These insights reveal that the choices made today will significantly impact the performance, cost, and scalability of LiDAR systems. As the market evolves, consolidation of winning technologies and key players will shape a more sustainable future for the LiDAR industry.
Applications of LiDAR
LiDAR technology has caused a revolution in various industries, from autonomous vehicles to urban planning. The LiDAR market continues to expand rapidly, with top LiDAR companies driving innovation and shaping the future of 3D mapping and sensing. These industry leaders are pushing the boundaries of what's possible, developing cutting-edge solutions that have an impact on sectors ranging from construction to agriculture. The LiDAR applications are majorly driven by the sensor range, cost, resolution , detection capability and Field of View (FoV).
Airborne LiDAR: Mounted on drones or helicopters, it is used as a 3D sensing technology for mapping large areas, with topographic LiDAR mapping land areas and bathymetric LiDAR mapping underwater terrains.
Terrestrial LiDAR: Operates on the ground, either mobile (mounted on moving vehicles) or static (installed on stationary structures), and is used in archaeology, surveying, mining, infrastructure scanning and engineering.
How to select a LiDAR?
When selecting a LiDAR sensor, several factors must be considered to align with the specific application's needs.
Start by understanding the sensor's range, resolution, and detection capability, as these directly influence the quality and accuracy of the data.
Field of View (FoV) is critical for applications requiring wide-area coverage or intricate scanning. Assess the type of beam steering (e.g., mechanical, solid-state, or optical phased array) for its durability and precision.
Choose the appropriate wavelength based on the environment; 905nm is cost-effective, while 1550nm offers better performance in challenging conditions. Detector types like APD or SiPM should match the sensitivity requirements.
Finally, weigh the cost, scalability, and integration with complementary technologies like AI or IoT to ensure an optimal, future-ready solution
Here's a simple selection matrix for choosing the right LiDAR system. The matrix lists key criteria and helps compare different LiDAR technologies based on application requirements:
Here is a guideline on how to use this matrix…
This matrix guides decision-making by enabling you to prioritize needs, evaluate LiDAR options, and select the most suitable system for your project's requirements.
Identify Priorities: Rank the criteria based on your project's needs (e.g., range, cost, or speed).
Compare Options: Match each LiDAR type to your priorities using the matrix.
Narrow Down: Focus on the LiDAR systems that score highest in your critical areas.
Kodifly's LiDAR Solutions:
Transforming Infrastructure Management with AI-Driven Digital Twins
At Kodifly, we are innovating LiDAR-powered solutions that are revolutionizing infrastructure management. Our key focus is to utilize cutting-edge AI technologies with actionable insights. Here’s a closer look at our unique solutions and some creative technical options.
SpatialTwin: TreeGuard
Proactive Vegetation Management for Rail Corridors

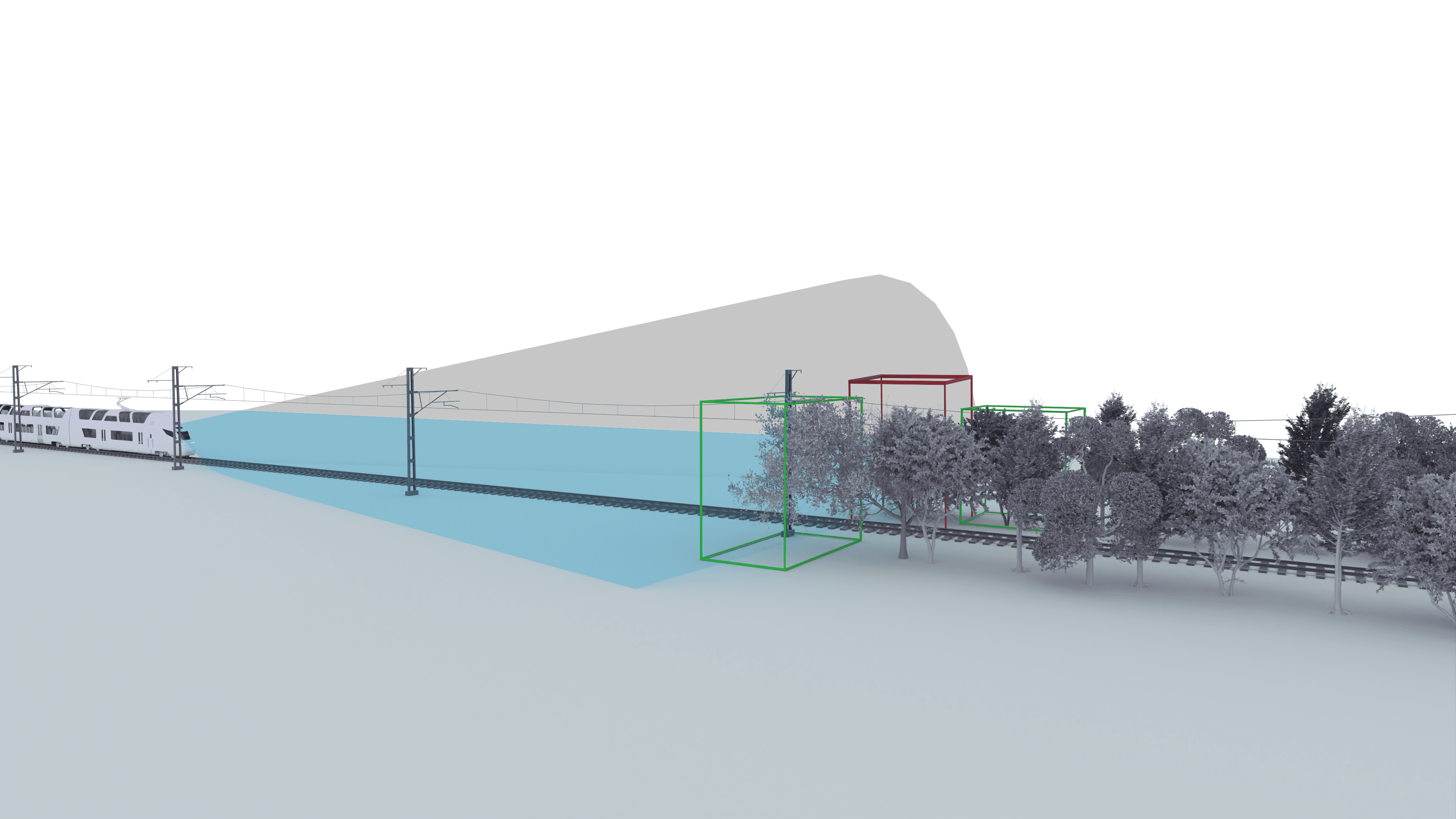

TreeGuard uses AI to monitor vegetation encroachment along railway lines, providing actionable insights to prevent disruptions in operations and averting potential accidents. Here's how TreeGuard can be enhanced for greater functionality:
Predictive Growth Models: By integrating historical growth data and machine learning algorithms, TreeGuard can forecast future vegetation growth patterns, allowing maintenance teams to address issues before they arise.
Real-Time Alerts with Weather Integration: TreeGuard can factor in weather conditions, such as storms or heavy rains, to prioritize areas at higher risk of damage due to falling trees or overgrown vegetation.
SpatialTwin: TrackVision
Enhanced Track Safety and Clearance Monitoring

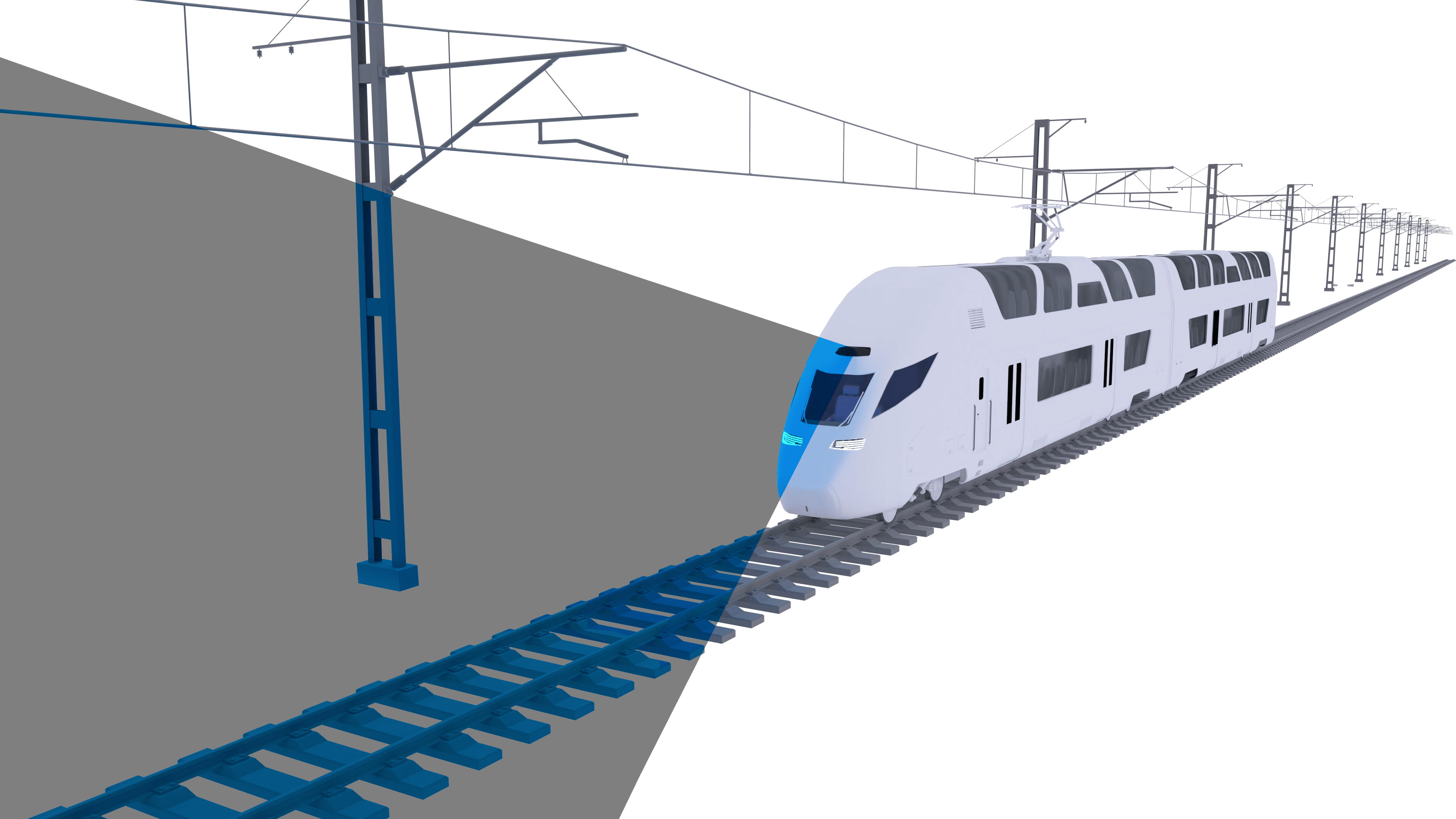

TrackVision excels at detecting foreign objects and monitoring track clearances to ensure seamless rail operations.
Dynamic Intrusion Detection: By incorporating video analytics alongside LiDAR, TrackVision identifies moving objects like animals or unauthorized personnel and trigger instant alerts.
Integration with IoT Sensors: Pairing TrackVision with IoT-enabled track sensors provides additional safety data, such as track temperature or stress levels, to further enhance decision-making.
Automated Maintenance Planning: Leveraging AI, TrackVision generates maintenance schedules based on object detection patterns, ensuring tracks remain operational and safe.
SpatialTwin: BallastVue
Comprehensive Ballast Profiling for Railway Stability

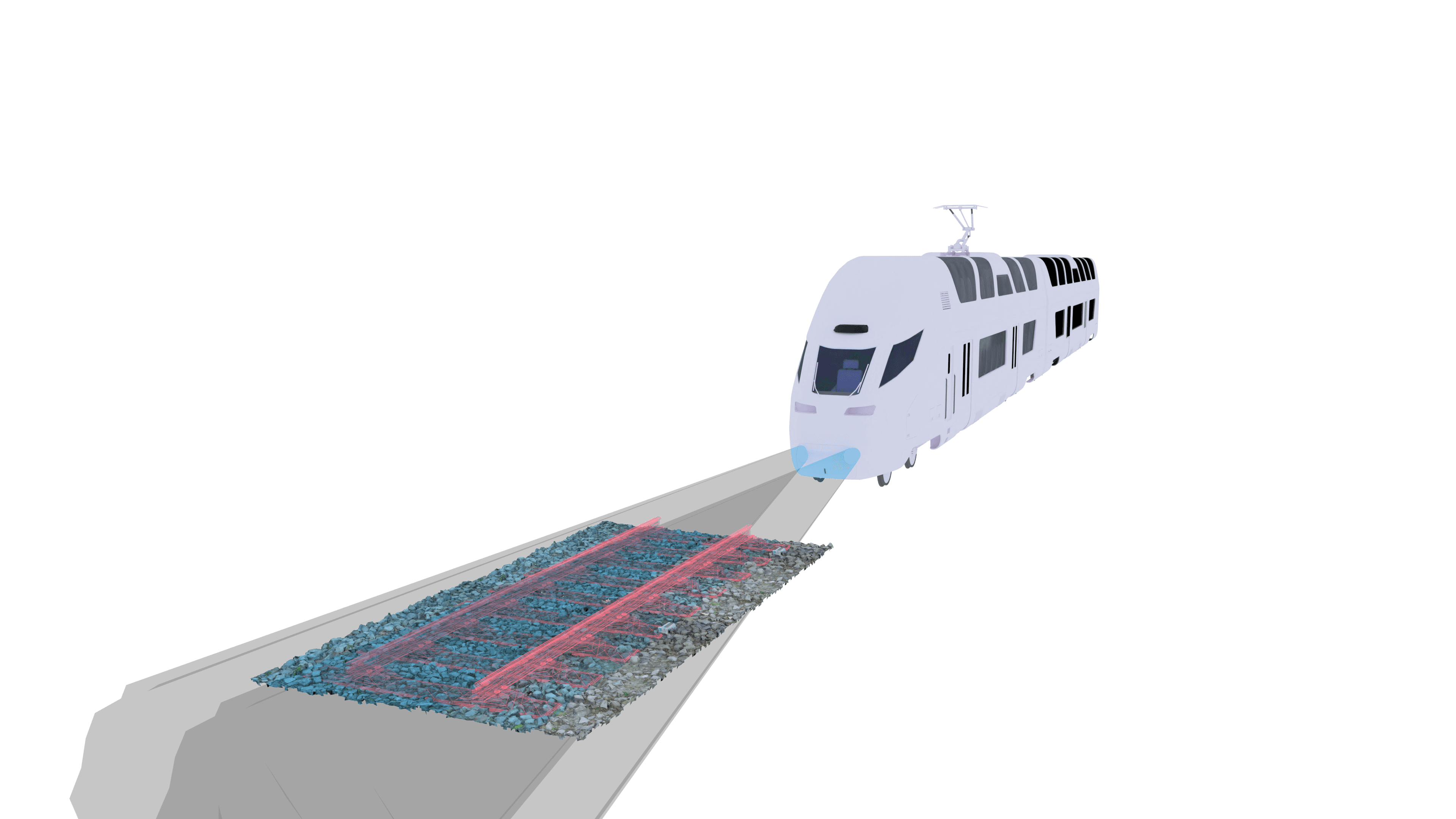

BallastVue’s profiling of the top layer of railway ballast is crucial for maintaining track stability. Advanced technical solutions by Kodifly makes BallastVue even more impactful:
3D Ballast Analysis: Using LiDAR-generated 3D models, BallastVue visualizes ballast conditions in intricate detail, making it easier to pinpoint weak areas.
Automated Defect Categorization: Our specially designed AI models classify ballast defects by type (e.g., erosion, contamination) and severity, prioritizing repairs for maximum efficiency.
SpatialSense - 360 Mobile Mapping System
Empowering Urban Infrastructure Management with Detailed Spatial Insights
SpatialSense offers comprehensive urban mapping with multi-layer data outputs to aid infrastructure planning and maintenance.
AI-Driven Workflows: Kodifly aims to automate urban planning workflows by analyzing spatial data to propose optimal maintenance schedules or identify potential bottlenecks in infrastructure.
Efficient Law Enforcement: The mobile scanner facilitates the Law Enforcement Agencies to identify traffic violation hotspots using AI analytics. It also facilitates in performing comprehensive risk assessment for urban infrastructure.
Beyond Solutions: Kodifly’s Vision for the Future
Kodifly’s LiDAR-powered solutions reflect our commitment to transforming infrastructure management by providing innovative and cost-effective solutions. By embedding predictive analytics, integrating complementary technologies, and pushing the boundaries of spatial intelligence, these tools empower industries to proactively tackle challenges, reduce operational risks, and optimize resource allocation.
For infrastructure managers seeking reliable, future-ready tools, Kodifly offers a window into smarter, safer, and more efficient operations.
For more information, visit Kodifly's Solutions.
