Track Geometry Irregularities: Understanding and Addressing Key Issues

Introduction: A Journey Through the Rails

Imagine standing on a train platform, the hum of distant engines signalling the arrival of a locomotive. The train pulls in, carrying passengers with diverse stories—a student heading to college, a family visiting loved ones, a businessperson rushing to seal a deal. Behind the scenes of this everyday scene lies a complex web of steel tracks, tirelessly supporting millions of such journeys across the globe.

Railways are more than just a mode of transportation; they are lifelines connecting economies, communities, and cultures. But have you ever wondered what keeps these steel ribbons functional despite bearing colossal loads and weathering nature’s forces? The secret lies in their intricate track geometry—a meticulous alignment of rails and sleepers. When irregularities arise, the consequences ripple across safety, efficiency, and comfort.

Why Railways Are Important

Railways don’t just move people and goods; they drive economies, reduce environmental impact, and bring nations closer. Let’s dive deeper into why they are indispensable:

1. Economic Backbone

   1. Railways are the veins of commerce, supporting industries from agriculture to manufacturing.

   2. In India, for instance, major chunk of freight is transported via rail, saving billions in logistics costs annually.

   3. Countries like China and Germany have integrated high-speed rail networks to reduce transportation bottlenecks and boost exports.

2. Environmental Sustainability

   1. A train emits up to significantly less CO₂ per ton-mile than trucks, making it the greenest land transport option.

   2. Electrified railways further reduce dependency on fossil fuels, contributing to cleaner air and energy efficiency.

3. Capacity and Efficiency

   1. A single freight train can carry as much cargo as 300 trucks, reducing road congestion and maintenance costs.

   2. High-speed passenger trains, such as Japan’s Shinkansen, can move millions annually, connecting cities in hours instead of days.

4. Safety and Reliability

   1. Statistically, rail transport is far safer than road or air travel. Advanced signalling and automated systems ensure minimal operational disruptions.

5. Cultural and Historical Significance

   1. From the iconic Trans-Siberian Railway to the scenic Darjeeling Himalayan Railway, railways have become symbols of human ambition and ingenuity. Trains are vastly used throughout the world for exploring and promoting cultural and historical places both primarily for tourist attraction.




Data Spotlight: The Impact of Railways

| Aspect              | Statistics                                                                                         |
|---------------------|---------------------------------------------------------------------------------------------------|
| Global Freight      | 9.3 billion tons of goods are transported via rail annually.                                      |
| Passenger Movement  | Over 10 billion passenger trips annually across global rail networks.                             |
| Economic Savings    | $400 billion in reduced transportation costs annually worldwide.                                  |
| Environmental Impact| 0.3 kg of CO₂ per ton-kilometre (compared to 2.5 kg for road transport).                           |
| Accident Rate       | Rail travel is 17 times safer than road travel per billion passenger-kilometres

As the train in our story weaves through cities and towns, it becomes evident: railways are more than infrastructure; they are enablers of growth and unity.

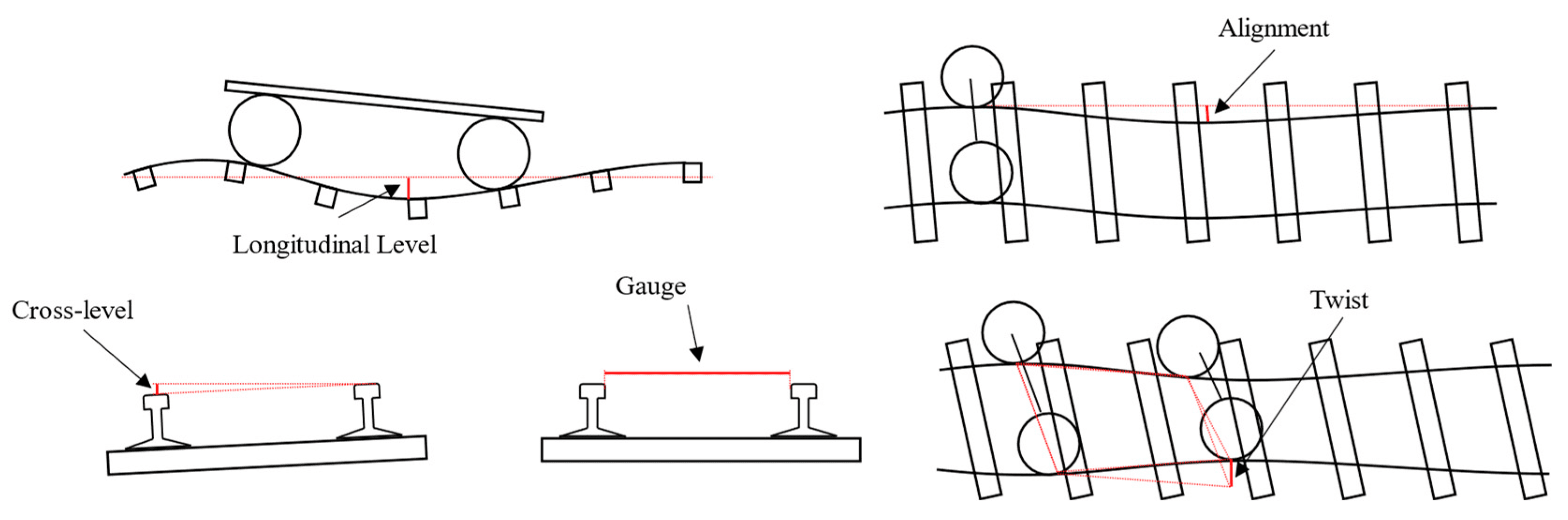

Key Track Geometry Issues

Source: AI generated

Track geometry issues are critical to ensuring the safe, comfortable, and efficient operation of railway systems. Poor track geometry not only compromises train safety but also leads to increased maintenance costs and operational inefficiencies. Below is a detailed look at the most prevalent challenges:

1. Longitudinal Level Defects: Variations in the vertical alignment of rails—commonly referred to as "longitudinal level defects"—result in uneven surfaces that negatively impact ride quality. These defects create a bumpy ride for passengers and freight, cause excessive stress on the train suspension system, and increase the risk of derailment, especially at high speeds or under heavy loads.

2. Gauge Widening: The distance between the two rails, known as the track gauge, tends to increase over time due to rail wear, ballast instability, or repeated dynamic loads from passing trains. When the gauge widens beyond acceptable limits, the train wheels may lose contact with the rails, posing a significant safety hazard. This issue is particularly critical on curves, where lateral forces are higher.

3. Twist and Cant Irregularities: Rail cant and twist refer to the angle and elevation difference between the rails. Uneven elevation, often caused by subsidence or poor maintenance, leads to imbalance during train travel. This imbalance exerts uneven pressure on train wheels and track components, accelerating wear and increasing the likelihood of derailments on curves or transitions.

4. Corrugation: Rail corrugation manifests as wavy patterns on the rail surface, caused by dynamic forces from repeated wheel-rail interactions. These patterns increase noise levels and induce vibrations, reducing passenger comfort and leading to faster deterioration of rails, wheels, and supporting components. Corrugation also increases rolling resistance, impacting energy efficiency.

5. Alignment Deviations: Horizontal misalignments, or deviations in the lateral position of rails, compromise the smooth trajectory of trains. These misalignments force trains to reduce speed for safety, affecting schedules and operational efficiency. Additionally, the irregular forces from misaligned rails accelerate wear on wheels and rails, necessitating frequent repairs.

6. Wheel Burns: When train wheels slip on the rails, intense localized heat is generated, leading to "wheel burns." This overheating deforms the rail surface, weakening its structural integrity. Over time, wheel burns can propagate into deeper cracks, increasing the likelihood of rail failures under heavy loads.

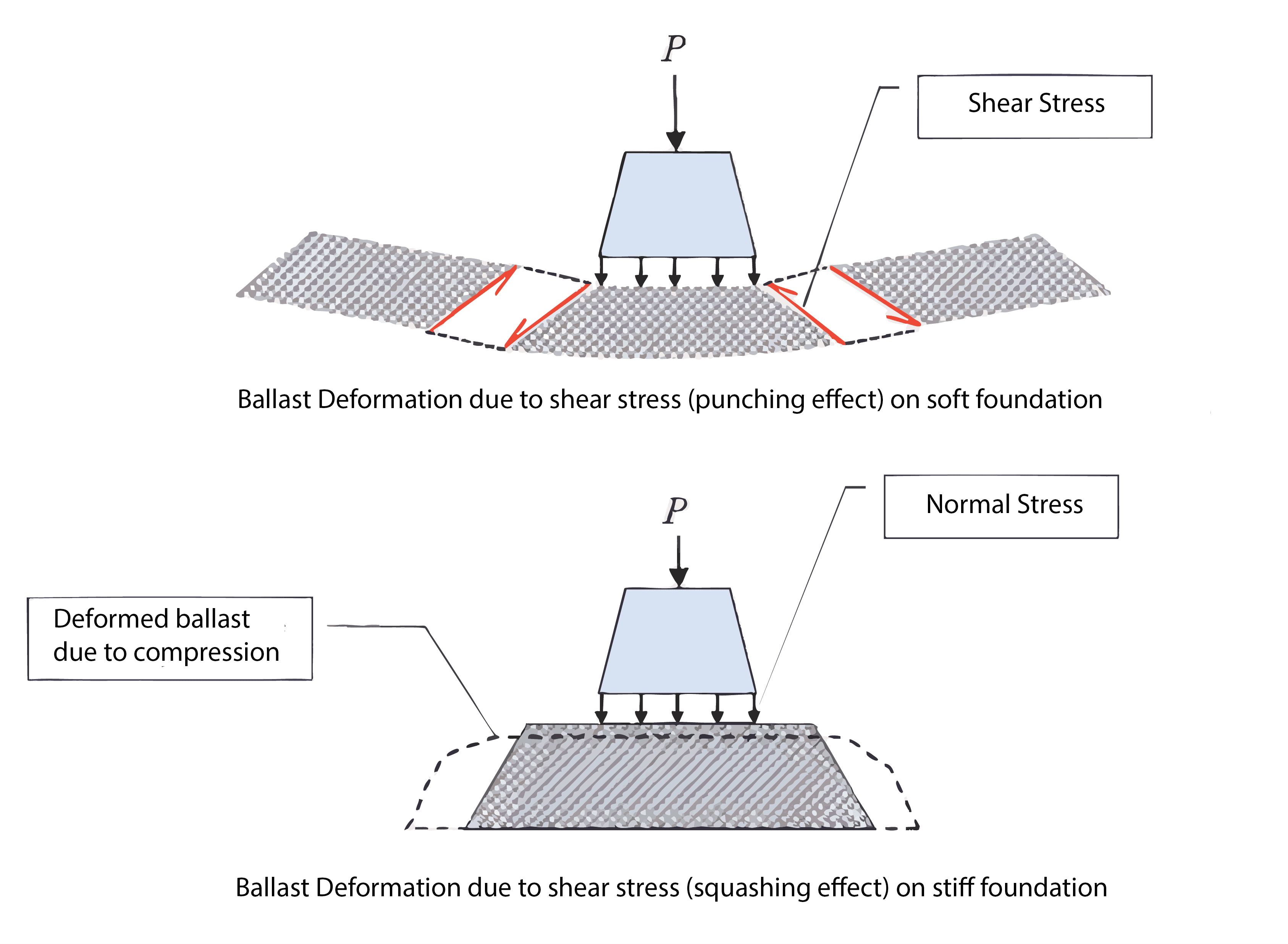

7. Ballast Deformation: The ballast, a layer of crushed stones supporting the tracks, plays a crucial role in maintaining track stability and alignment. Over time, ballast can become compacted or displaced due to train loads, water infiltration, or contamination. Deformed ballast reduces its ability to distribute loads evenly, leading to uneven tracks and a higher risk of track geometry defects.

Addressing these challenges through regular inspection, maintenance, and innovative solutions is essential to ensure the long-term safety, reliability, and efficiency of railway operations.

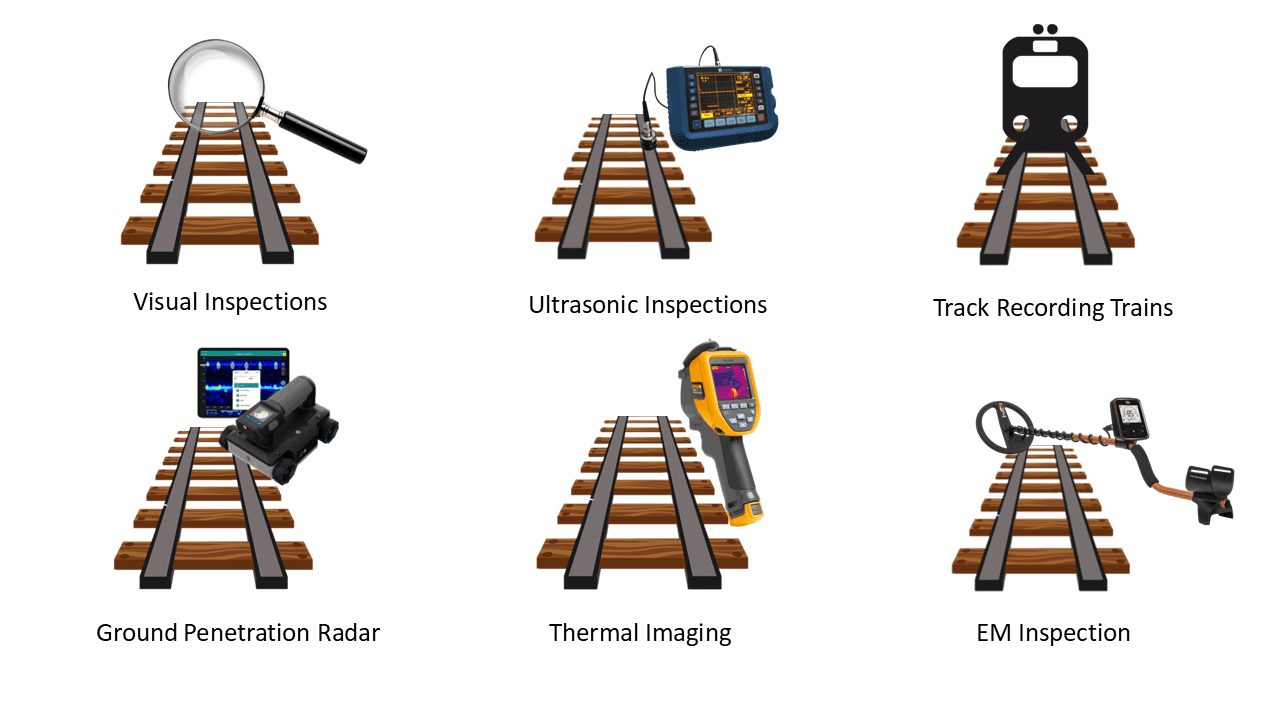

Inspection Methods Currently in Use

Railway track inspections are critical to maintaining safety and ensuring the long-term operational efficiency of rail systems. A combination of traditional and advanced methods is employed to identify and address track defects before they pose risks. Below is an expanded explanation of the most commonly used inspection methods:

1. Manual Inspections

Manual inspections are one of the oldest and simplest methods of maintaining railway track integrity. Inspectors use handheld tools, such as track gauges and levels, to measure parameters like rail spacing, elevation, and alignment. These inspections are often performed visually, with inspectors walking along the tracks to identify surface-level defects such as cracks, alignment deviations, or ballast displacement.

2. Ultrasonic Testing (UT)

Ultrasonic testing employs high-frequency sound waves to penetrate the rail and detect internal defects like cracks, voids, and inclusions. The sound waves reflect differently when they encounter anomalies, allowing inspectors to pinpoint issues within the rail structure.

3. Track Recording Cars

Track recording cars are automated inspection vehicles equipped with advanced sensors, lasers, and accelerometers. These cars travel at operational speeds while continuously collecting data on track geometry, including alignment, longitudinal levels, and gauge.

4. Ground Penetrating Radar (GPR)

GPR uses Radio waves to scan beneath the surface of the tracks, identifying subsurface anomalies such as ballast fouling, water infiltration, and voids in the subgrade.

5. Thermal Imaging

Thermal imaging cameras detect temperature variations along the rail, which may indicate wear, stress, or material fatigue. Hotspots can signal excessive friction, while cold spots may indicate cracks or separations in the rail.

6. Electromagnetic Inspection

This method uses electromagnetic fields to identify material fatigue, cracks, and corrosion in rails and rail welds. Variations in the electromagnetic response help locate defects within the metal structure.

Innovative Inspection Methods

As railways evolve to meet modern demands, innovative inspection methods are reshaping the way track maintenance is conducted. These advanced solutions integrate technology with engineering to improve accuracy, reduce downtime, and enable predictive maintenance.

1. High Precision Laser Scanners

• How it Works: LiDAR uses laser beams to create detailed 3D maps of railway tracks, capturing every minute detail, such as deviations in alignment, surface irregularities, and vegetation overgrowth. It also collects Point Cloud Data that can be used for 3D SLAM generation and creation of a Digital Twin.

• Applications: It detects longitudinal level issues, gauge widening, and ballast deformation with high accuracy. LiDAR can also monitor track clearance and help identify potential obstructions.

• Benefits: LiDAR operates efficiently even in adverse weather or lighting conditions, enabling frequent and comprehensive inspections without interrupting operations.

2. AI-Powered Camera Systems

• How it Works: High-resolution cameras capture real-time images or video of tracks. AI algorithms analyse the data to identify defects such as cracks, misalignments, or loose bolts.

• Applications: Ideal for continuous monitoring, especially in high-speed rail networks where frequent inspections are critical. Cameras can also detect anomalies in nearby infrastructure, such as bridges and tunnels.

• Benefits: This method is scalable, cost-effective, and offers rapid defect detection, ensuring timely interventions.

Source: AI generated

3. Drones with Integrated Sensors

• How it Works: This approach uses multi sensor data fusion where a commercial drone is equipped with cameras, Laser Scanners, LiDARs, and thermal sensors. The inspection drones can fly over railway tracks, capturing high-definition data related to the track deformations.

• Applications: Drones excel in inspecting hard-to-reach areas, such as bridges, tunnels, and remote stretches of track. They can identify track alignment issues, vegetation encroachments, and structural weaknesses in overhead equipment.

• Benefits: They significantly reduce inspection time and costs while minimizing risks to inspection teams.

4. Digital Twin Technology

• How it Works: Digital Twin Technology is revolutionizing railway maintenance by creating a digital replica of the physical railway system. This virtual model is continuously updated with real-time data from sensors and historical records, providing a dynamic representation of the track and associated infrastructure.

• Applications: The digital twin offers a real-time view of track conditions, pinpointing areas that need immediate attention, while also leveraging historical and live data to predict maintenance needs, minimizing unexpected downtimes. It enables operators to simulate changes in operational parameters, such as increased train loads or speeds, to assess their impact and plan pre-emptive reinforcements. Additionally, it optimizes maintenance schedules and resource allocation by identifying and prioritizing the most critical areas for intervention.

• Benefits: The digital twin provides a comprehensive view of the railway infrastructure, allowing operators to monitor track health holistically and make informed decisions.

By combining these innovative solutions, the railway industry is moving toward a predictive maintenance paradigm, ensuring safer, more reliable, and cost-effective operations. These technologies are not just tools—they are enablers of a smarter, more sustainable future for railways.

Conclusion: Keeping the Rails Safe

As the train in our story approaches its destination, every smooth curve and seamless track joint reflects the precision of engineering and the vigilance of inspection teams. Behind the scenes, addressing track geometry irregularities—be it gauge widening, alignment deviations, or ballast deformation—ensures that the rails continue to support millions of journeys safely and efficiently.

Innovative technologies like LiDAR and AI-powered inspection systems are transforming the way railways are maintained, allowing us to detect and address potential issues before they become critical. These tools, combined with traditional methods like ultrasonic testing and track recording cars, form a robust defence against degradation.

The future of rail transport relies on this blend of foresight and technology. By shifting from reactive maintenance to predictive strategies, railways can achieve unprecedented levels of reliability, safety, and efficiency. Each train journey becomes not just a movement of goods and people but a testament to the relentless pursuit of engineering excellence. The tracks may appear silent, but they are dynamic systems evolving to meet the demands of an interconnected world.
